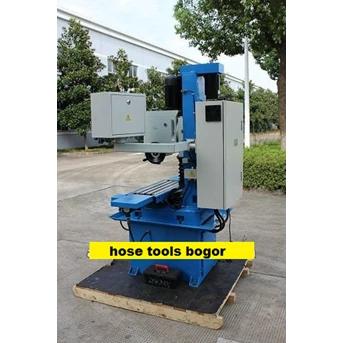

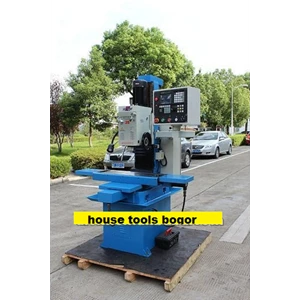

CNC Drilling and Milling Machine ZXK 32A WESTLAKE

Model : ZXK-32A
X-Axis Travel : 410 mm
Y-Axis Travel : 260 mm
Z-Axis Travel : 400 mm
Distance Between Spindle End To Table : 120-520 mm
Distance Between Spindle Center To Column Surface : 320 mm
Table Size : 700x290 mm
T Slot (Wide x Number x Space) : 14mmx3x80mm
Allowable Load : 250 kg
Motor of Spindle : 3.7 KW
Speed of Spindle : 100-6000 r/min
Taper of Spindle Nose : BT30
Spindle Column : 110 mm
Mode of Drive : Synchronus Belt
Motor of X,Y Axis : 1 KW
Motor of Z Axis : 1 KW
Rapid Feed Rate : 6 m/min
Cutting Feed Rate : 5-1500 mm/min
Positioning Accuracy : 0.025 mm
Repeat Ability : 0.015 mm
Power Requirement : 7.5 KW
Overall Size : 1400x1500x2150 mm
Net Weight : 1400 kg
Type of Screw : Ball Screw
Type of Guide Way : Rectangular Hardened Guide Ways
Mode of Tool Change : Pneumatic Fast Tool Change
Material of Bed : High Quality Cast Iron
Type of Lubrication : Central Lubrication
Type of Cover : Totally Enclosed Guard
CNC Control System : FANUC, MITSUBISHI, SIEMENS, KND, HNC, GSK
